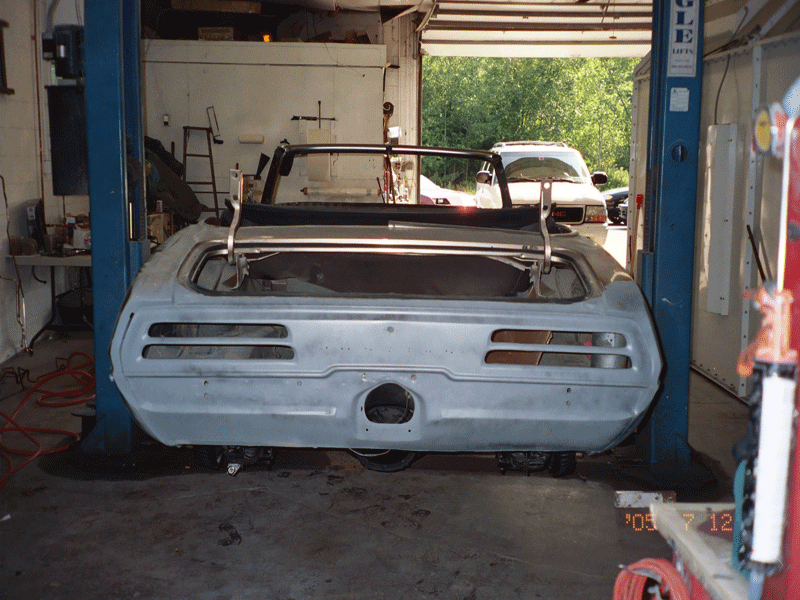

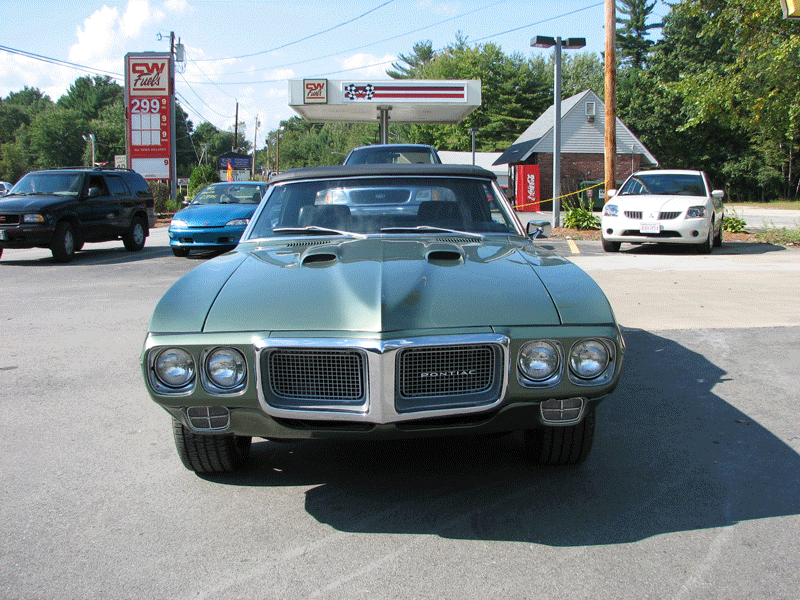

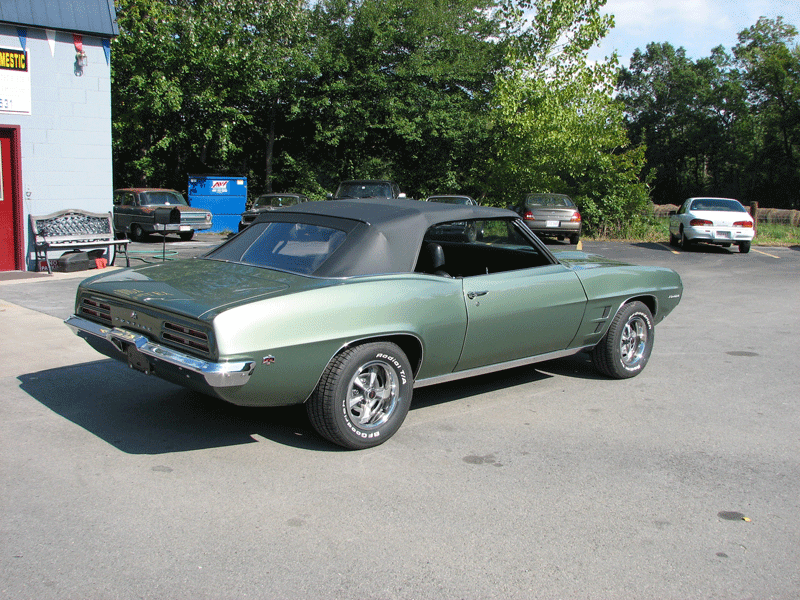

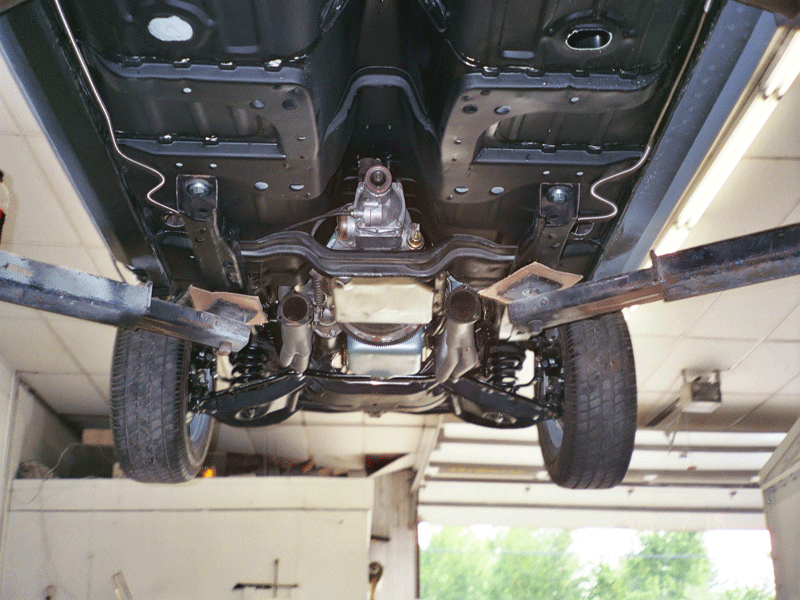

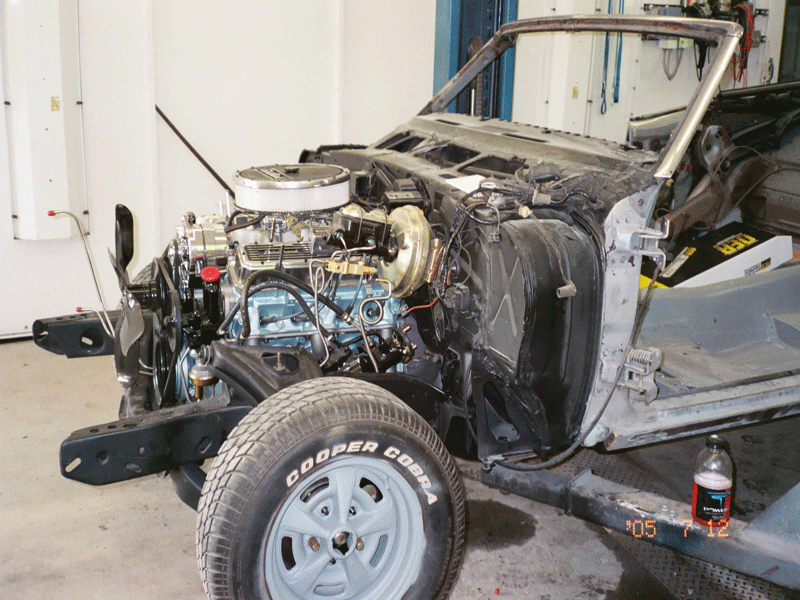

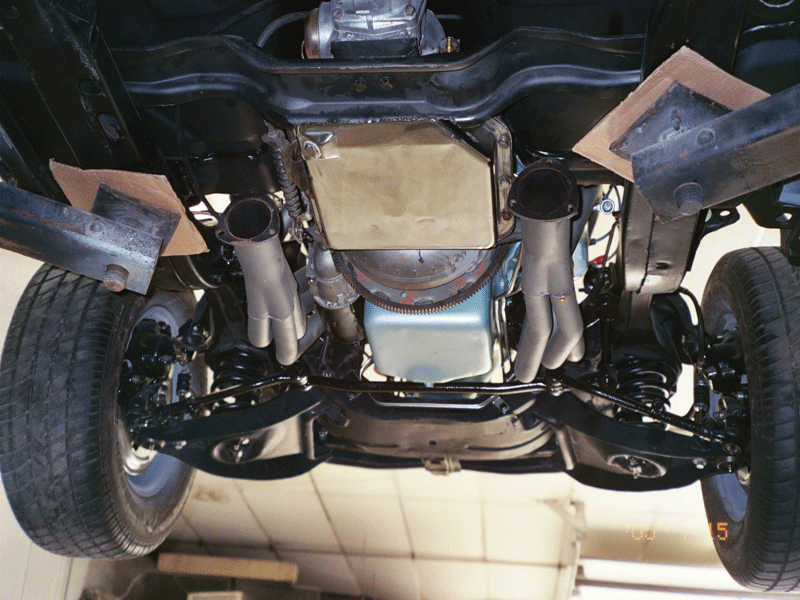

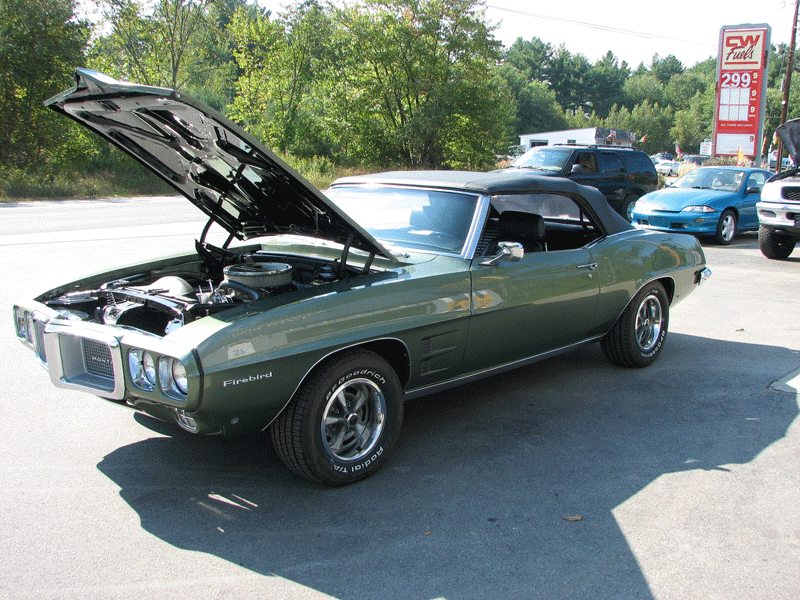

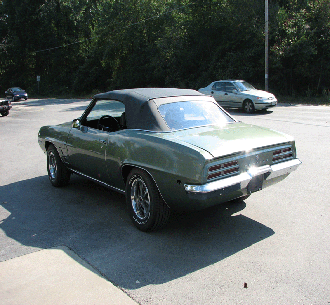

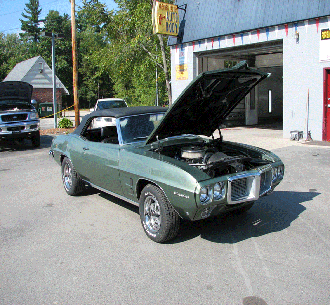

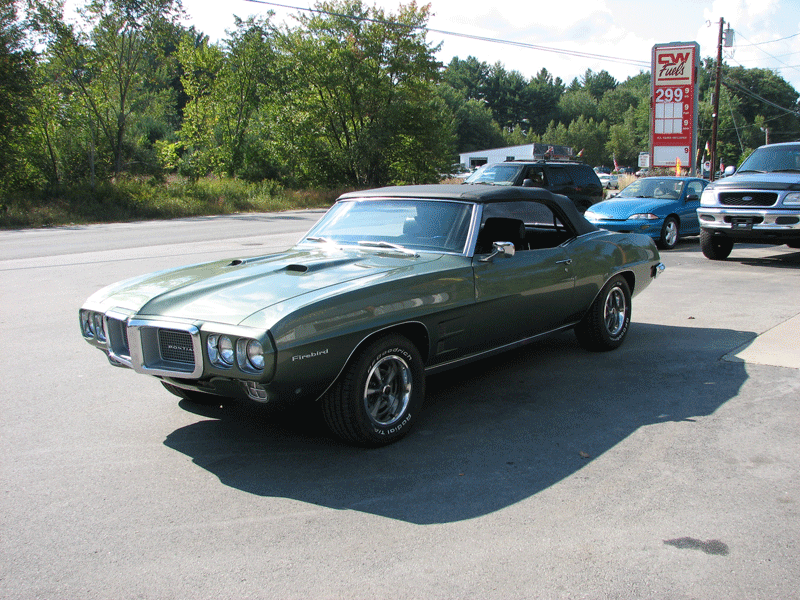

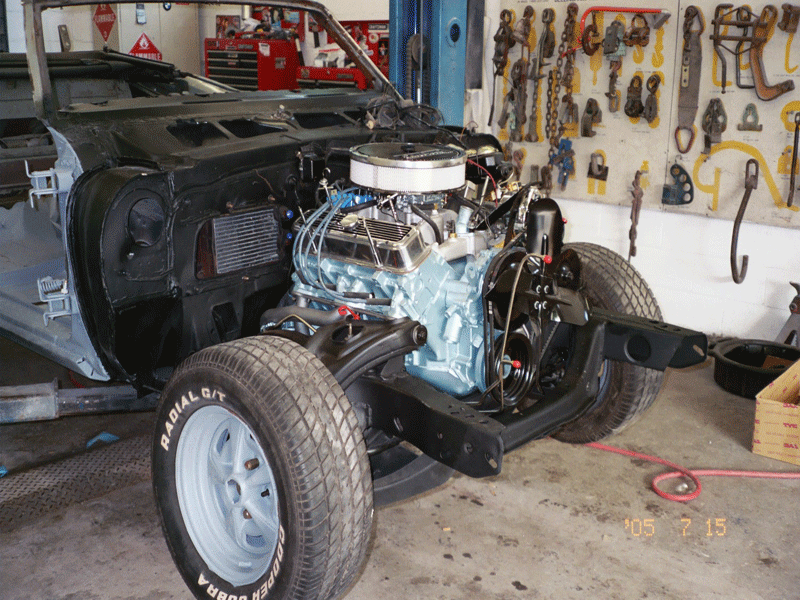

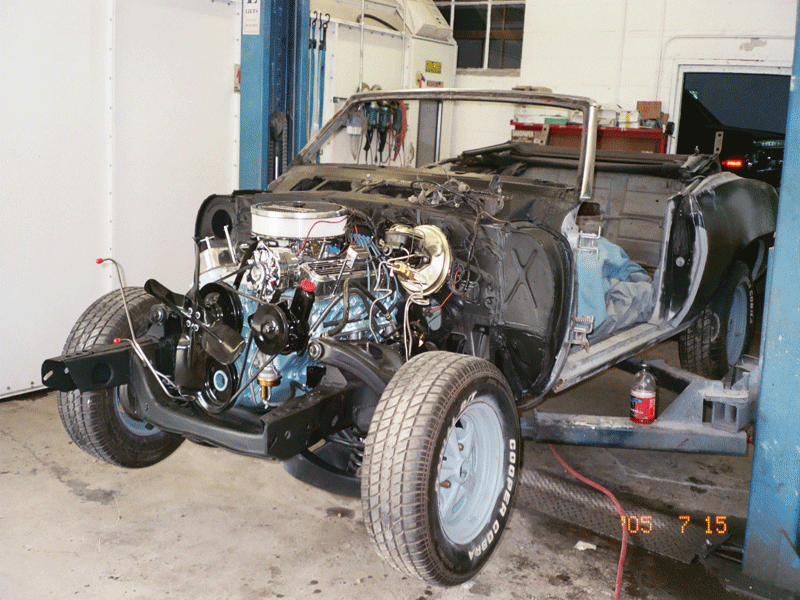

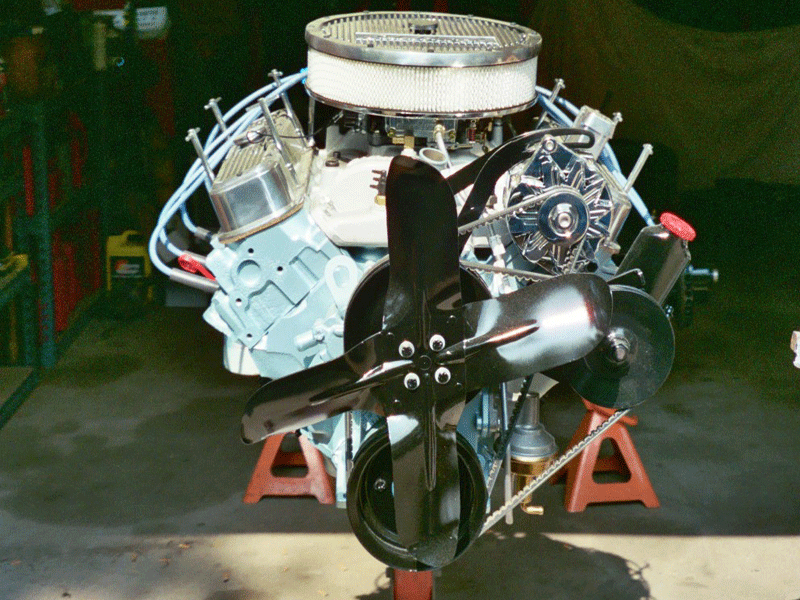

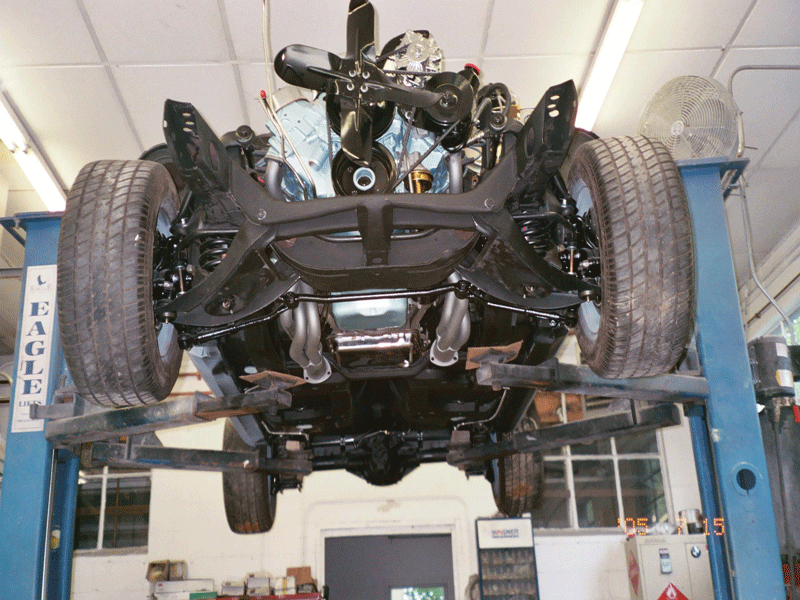

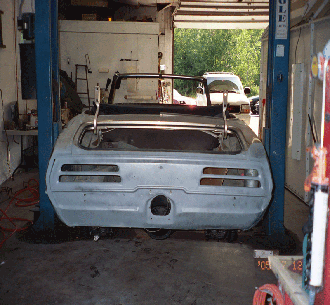

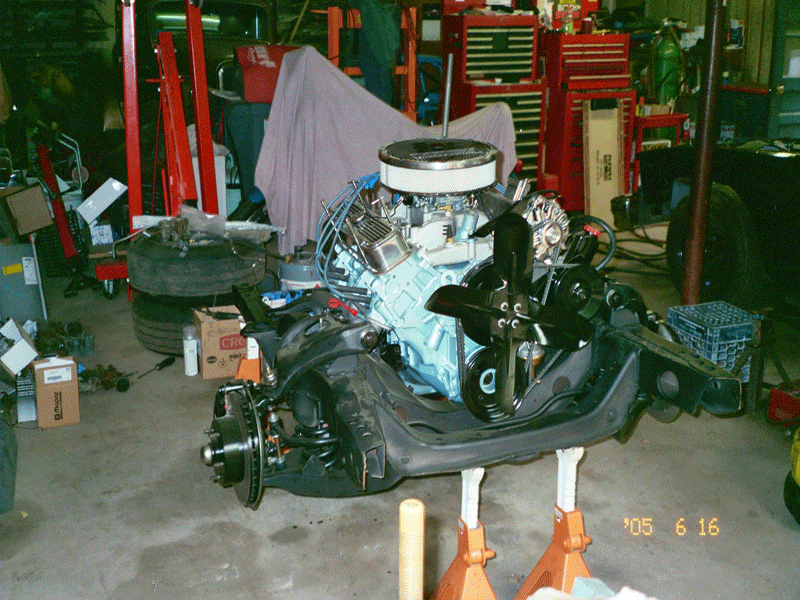

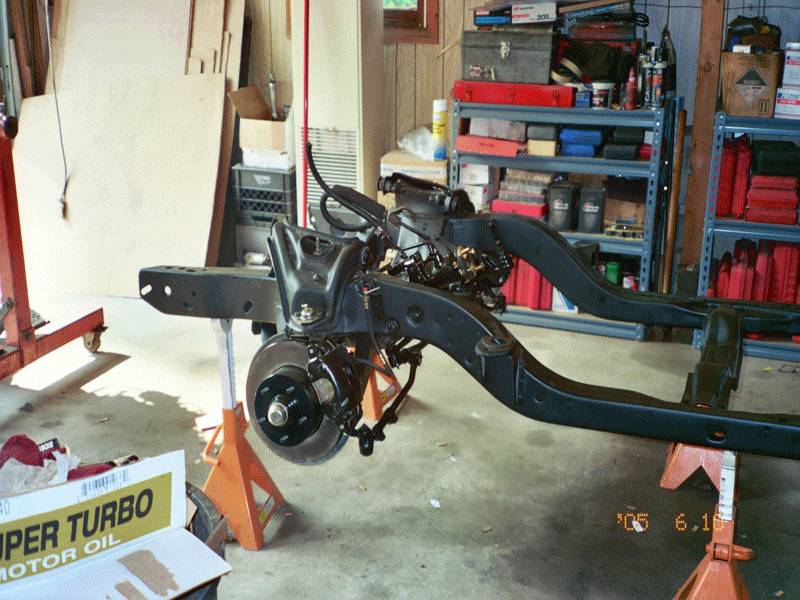

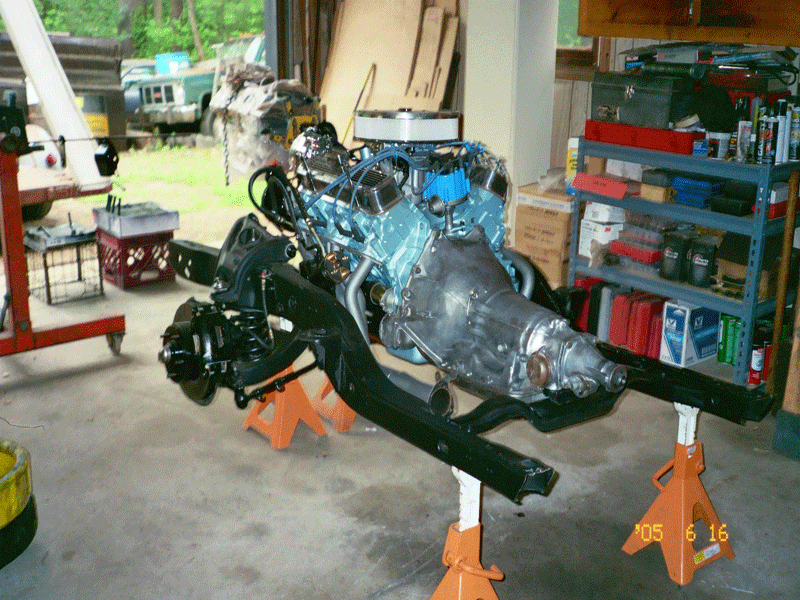

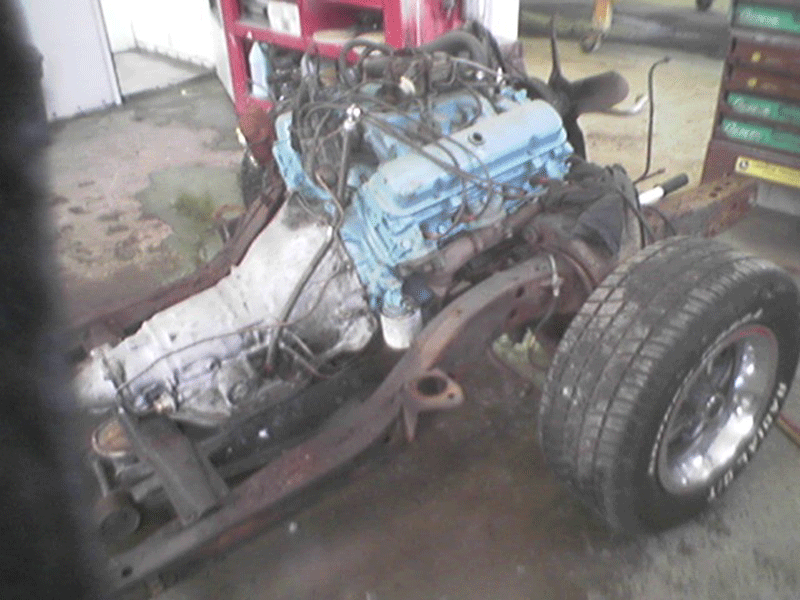

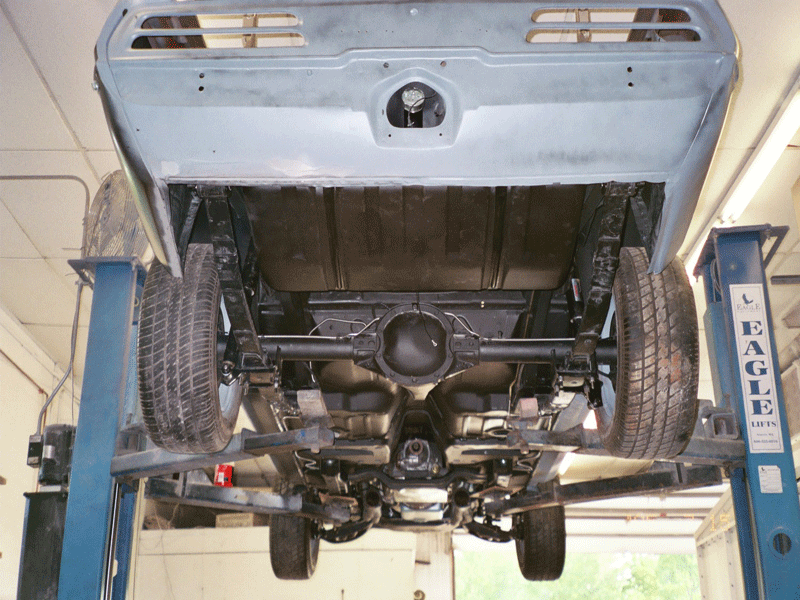

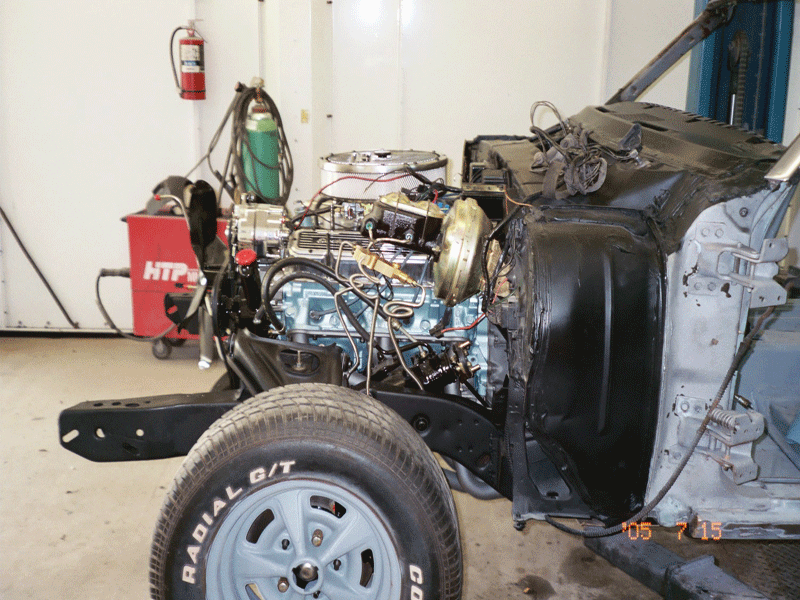

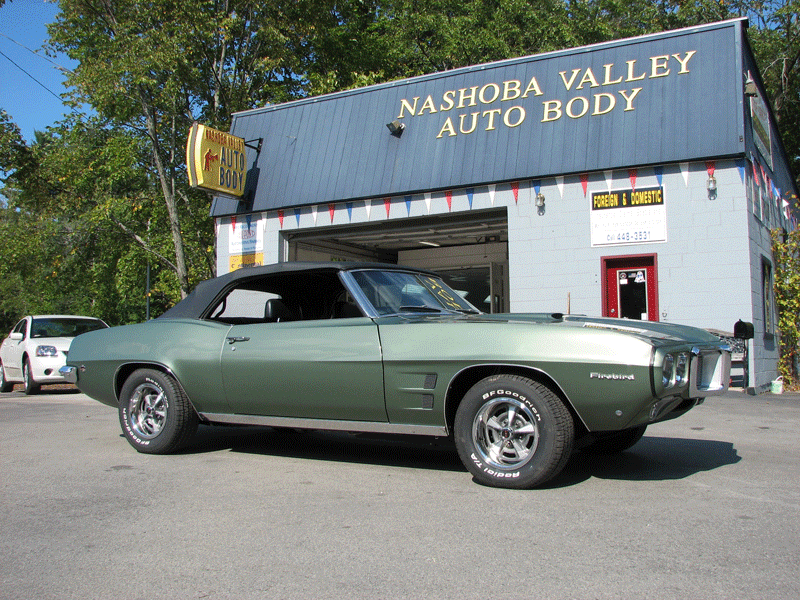

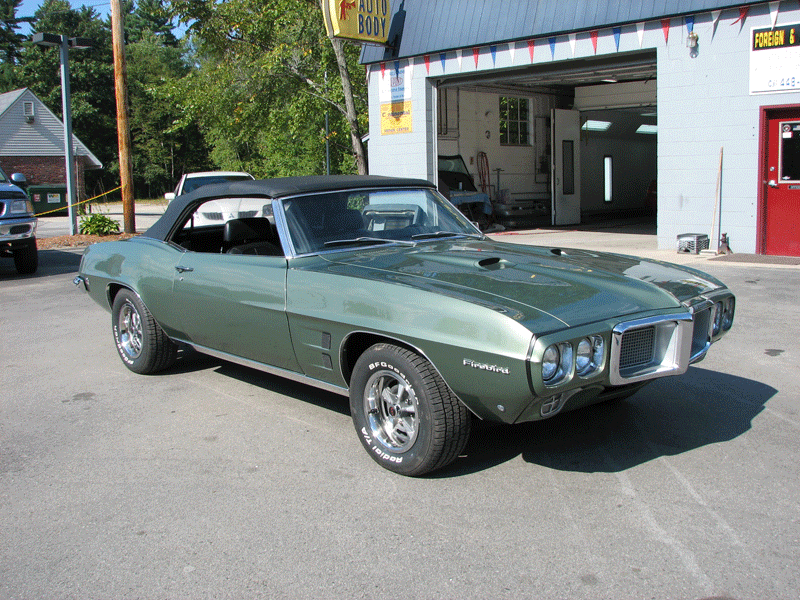

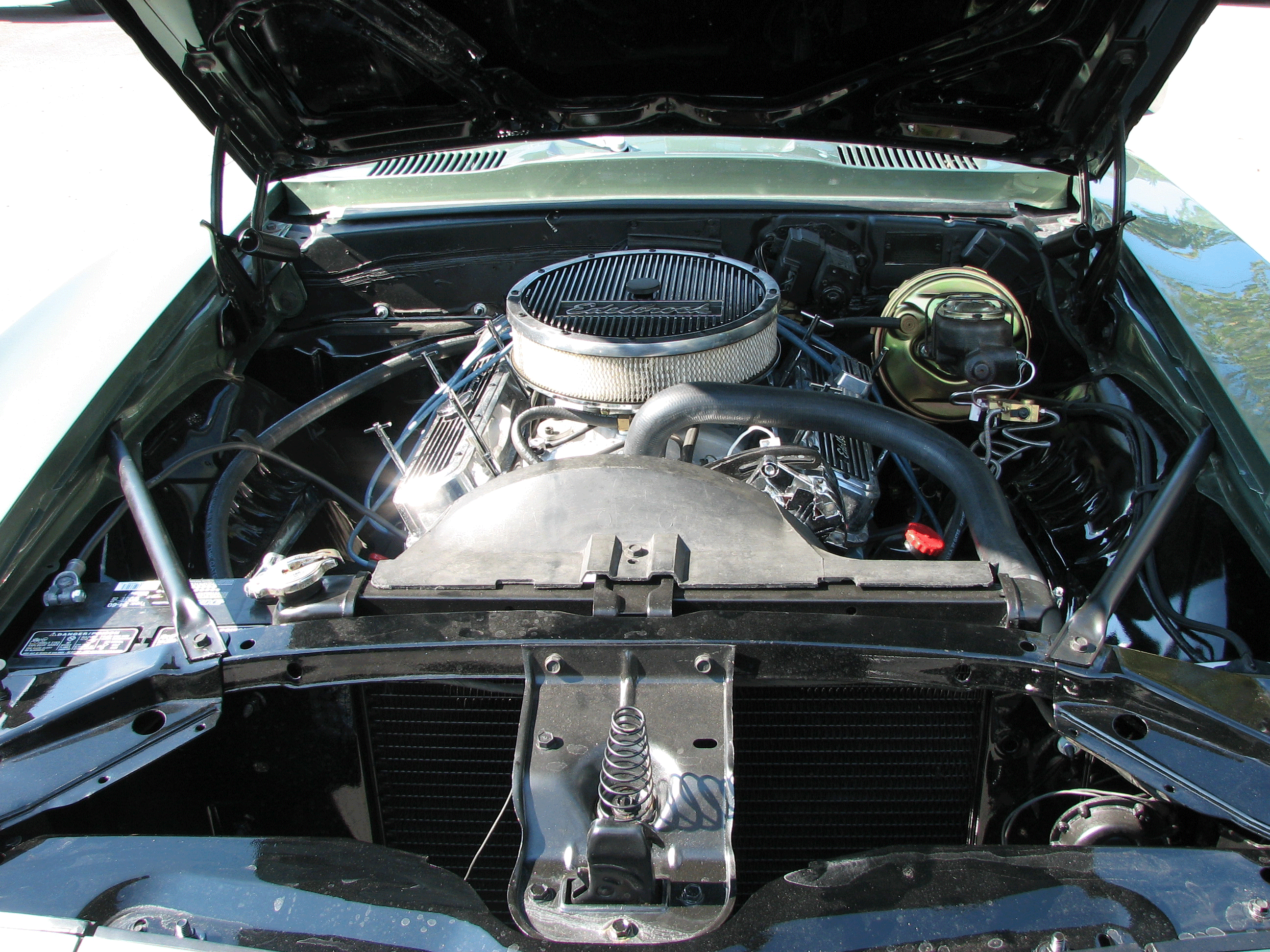

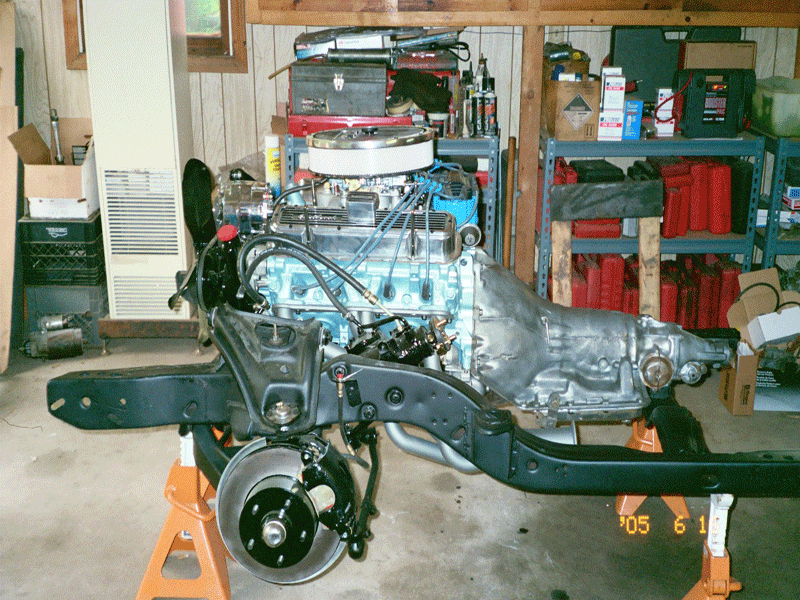

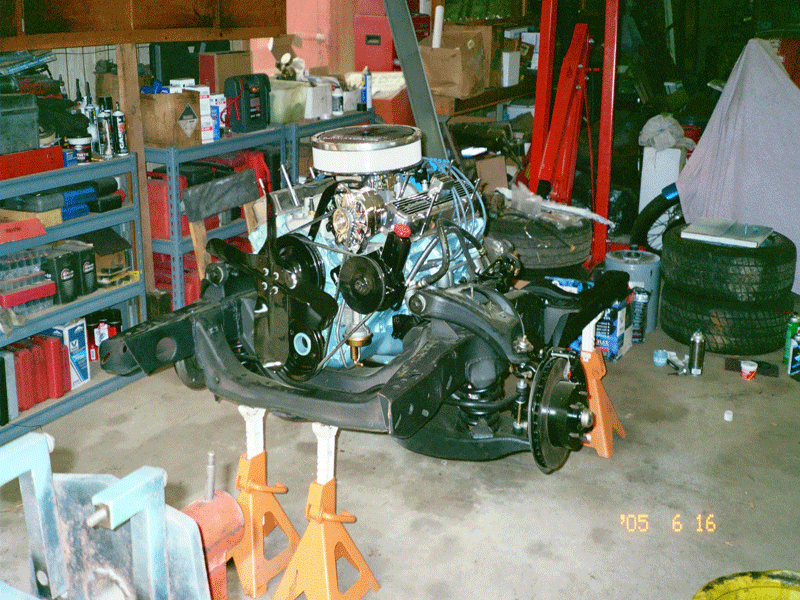

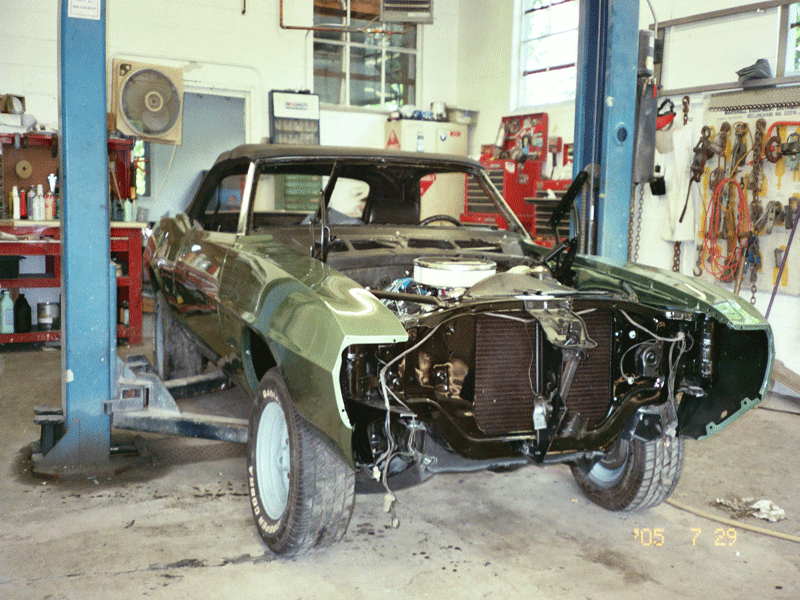

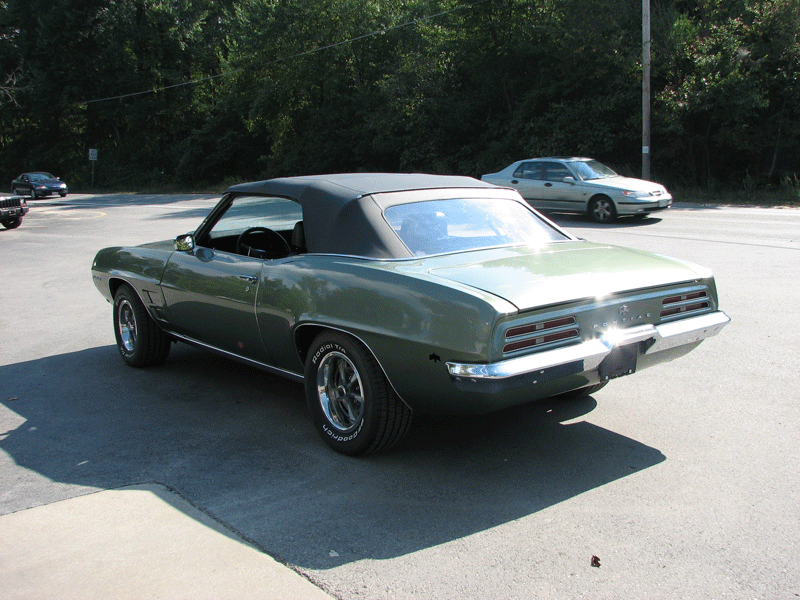

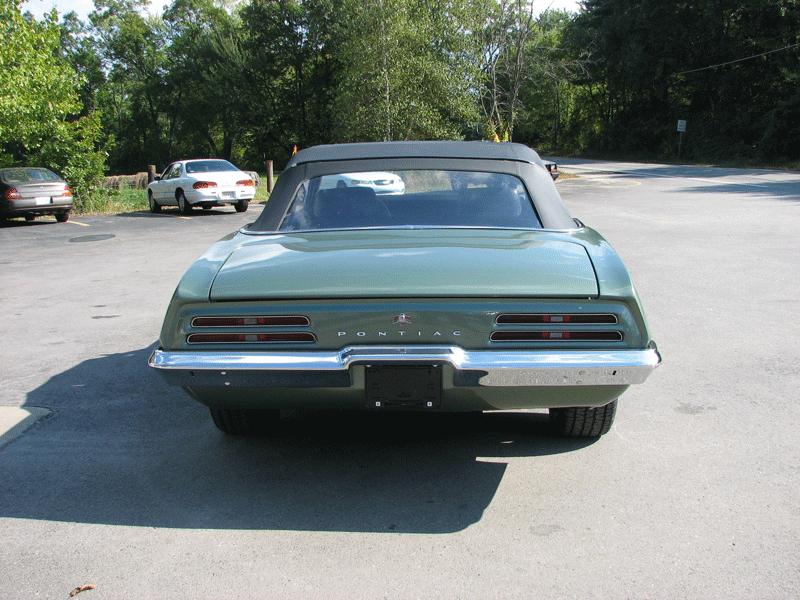

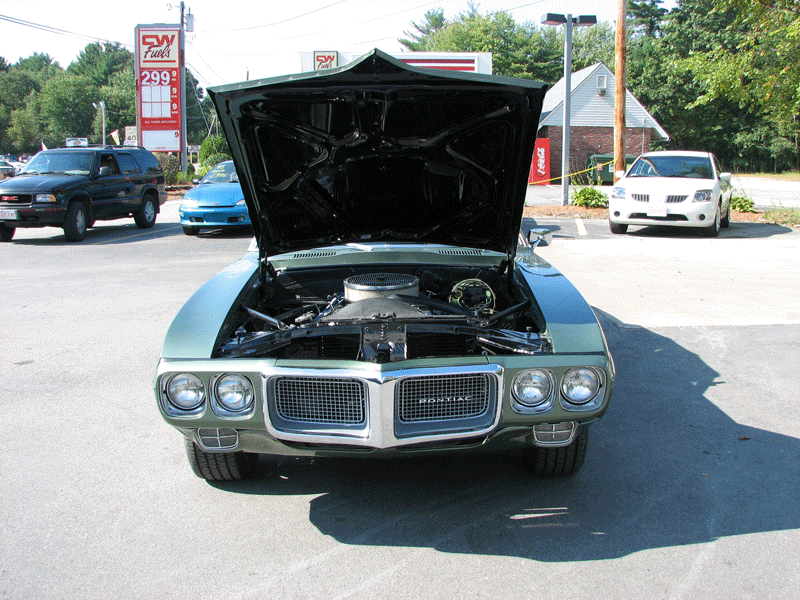

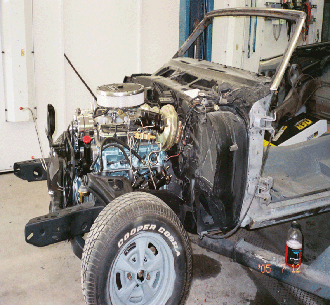

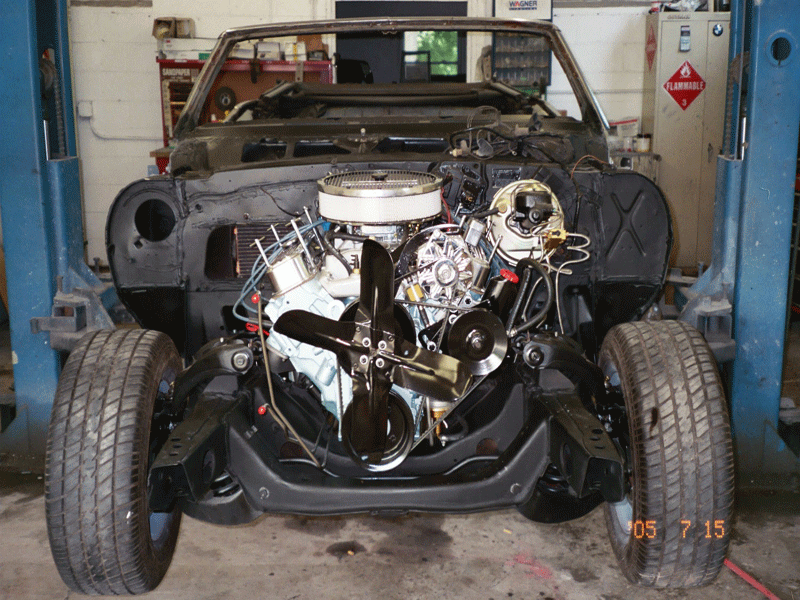

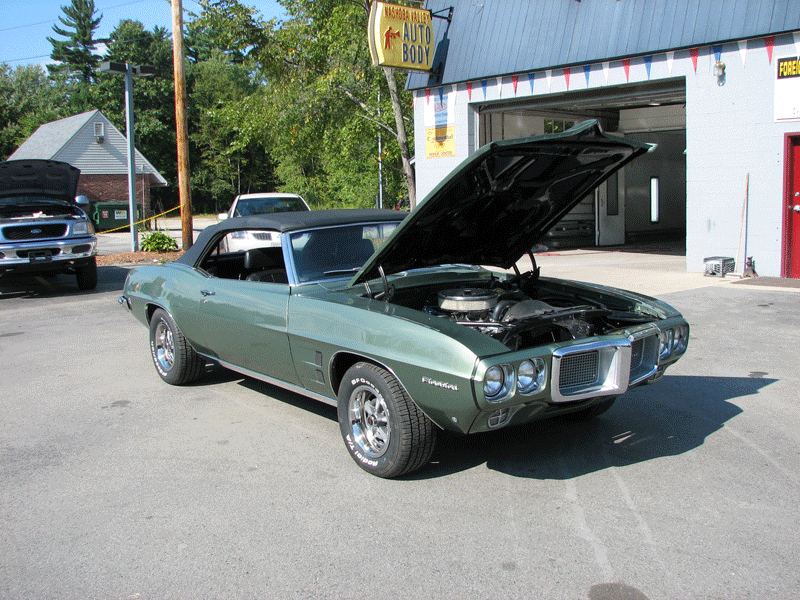

1969 Pontiac Firebird Restoration
This is just one example of the cars we have restored.
MWB Auto is currently seeking customers interested in craftsmen skilled in the fine art of custom automobile restoration, MWB Auto is a small one on one shop, well versed in all aspects of classic car restoration, we can perform complete and partial restorations. Let us help you bring you classic car back to life.
1969 Engine Identification Codes |
| Code |
Cyl. |
Disp. |
H.P. |
C.R. |
Carb. |
Trans. |
Description |
|
Location |
| WC |
8 |
350 |
265 |
9.2:1 |
2 BC |
Man. |
Firebird 350 |
|

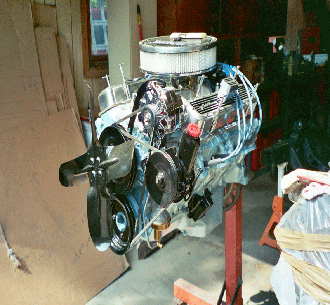

Engine Identification
V-8: Find code stamped on the block in front
of the right bank of cylinders.
6-Cylinder: Find code stamped on cylinder head
contact surface of the block behind the oil filler pipe.
123456 = Production Number
WH = Engine Code
VIN Identification
V-8: Stamped on the right of the timing chain cover.
6-Cylinder: Stamped on the right rear lower side.
(i.e. 2L9100001) |
|
| WH |
8 |
400 |
345 |
10.75:1 |
4 BC |
Man. |
Firebird 400 Ram Air IV |
|
| WM |
8 |
350 |
265 |
9.2:1 |
2 BC |
Man. |
Firebird 350 |
|
| WN |
8 |
350 |
325 |
10.5:1 |
4 BC |
Man. |
Firebird 350 H.O. |
|
| WQ |
8 |
400 |
335 |
10.75:1 |
4 BC |
Man. |
Firebird 400 Ram Air III |
|
| WZ |
8 |
400 |
330 |
10.75:1 |
4 BC |
Man. |
Firebird 400 |
|
| XB |
8 |
350 |
265 |
9.2:1 |
2 BC |
Auto. |
Firebird 350 |
|
| XC |
8 |
350 |
325 |
10.5:1 |
4 BC |
Auto. |
Firebird 350 H.O. |
|
| XL |
8 |
350 |
265 |
9.2:1 |
2 BC |
Auto. |
Firebird 350 |
|
| XN |
8 |
400 |
345 |
10.75:1 |
4 BC |
Auto. |
Firebird 400 Ram Air IV |
|
| YE |
8 |
350 |
265 |
9.2:1 |
2 BC |
3-Spd./Auto. |
Firebird 350 |
|
| YJ |
8 |
350 |
265 |
9.2:1 |
2 BC |
3-Spd./Auto. |
Firebird 350 |
|
| YT |
8 |
400 |
330 |
10.75:1 |
4 BC |
Auto. |
Firebird 400 |
|
| YW |
8 |
400 |
335 |
10.75:1 |
4 BC |
Auto. |
Firebird 400 Ram Air III |
|
| ZC |
6 |
250 |
175 |
9.0:1 |
1 BC |
Man. |
Firebird Standard |
|
| ZF |
6 |
250 |
175 |
9.0:1 |
1 BC |
Auto. |
Firebird Standard |
|
| ZH |
6 |
250 |
230 |
10.5:1 |
4 BC |
Man. |
Firebird Sprint |
|
| ZL |
6 |
250 |
235 |
10.5:1 |
4 BC |
Auto. |
Firebird Sprint |
|
(1) Air
(Note) Conflicting information for following codes. XD, WK, XK, ZD, ZE, ZN. |
Head Casting Identification Codes |
Code |
Engine |
Comments |
47 |
350 |
|
48 |
350 HO |
|
16 |
400 |
Automatic - 16, 62 W/AC |
48 |
400 Ram Air III |
Automatic - 16, 62 W/AC |
722 |
400 Ram Air IV |
|
1969 Firebird Air Conditioning Wiring Diagram
|
| |
| |
